Apex Tile

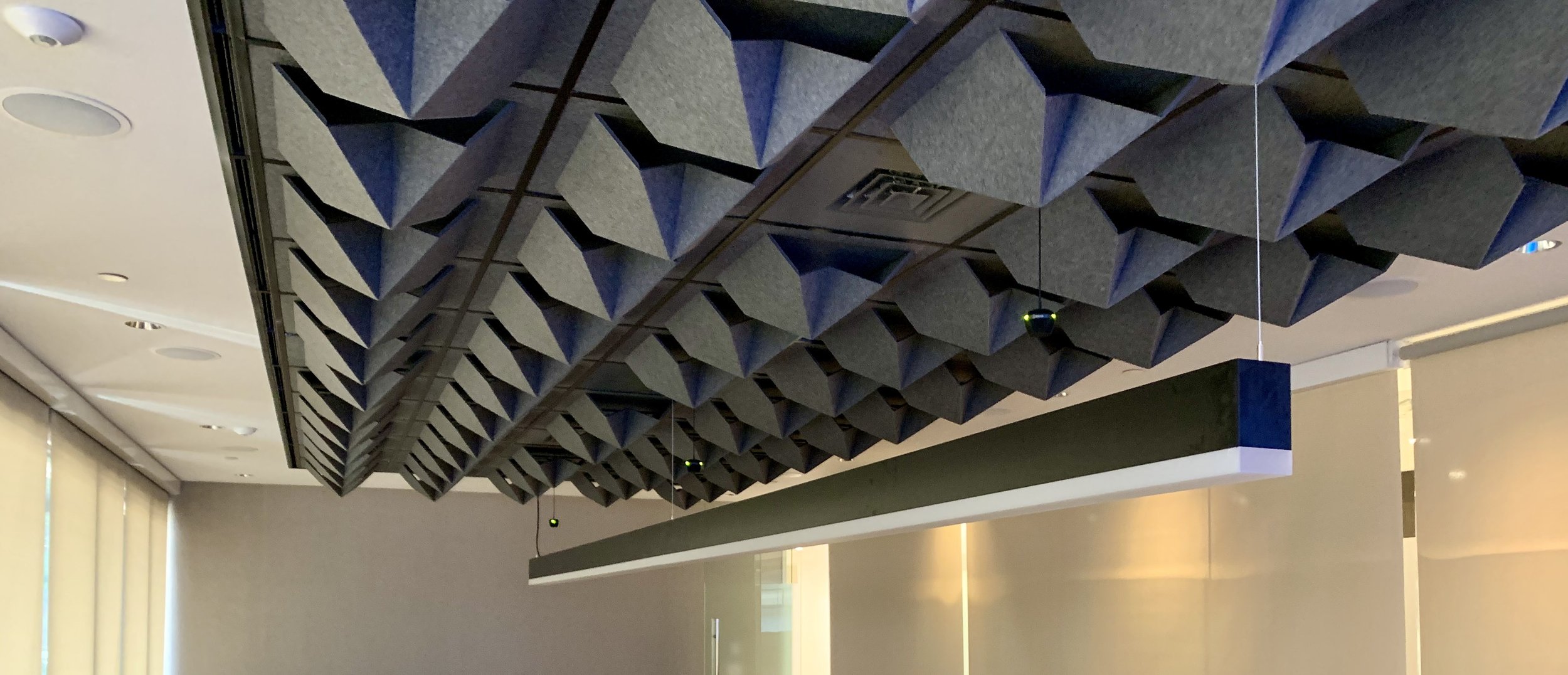

An angular beauty that forms patterns of complex dimension. Apex Tile is part of the FOLD acoustical ceiling tile collection. The product ships flat and magically folds into a three-dimensional tile on site—channel your inner child and think pop-up book. The material and shape provide both effective acoustics and pleasing aesthetics. Simply by changing their orientation in the grid, you can create an unlimited variety of patterns.

Installation types:

Drop the tiles into any 9/16” or 15/16” tee-grid.

Concealed tile install - tiles  fit neatly together edge-to-edge, to conceal the actual grid. 15/16” grid only.

Slight variations in color should be expected when using this material. We recommend requesting a sample to verify colors.

How to spec


  • 9/16”

    15/16”

  • Lay-in (exposed grid)

    Concealed below grid (hides grid) 15/16” grid only

  • Open will be exposed to the ceiling above.

    Closed will be an additional layer to enclose the ceiling.

  • F:02 Light Gray

    F:03 Medium Gray

    F:04 Dark Gray

    F:05 Warm Gray

  • F:02 Light Gray

    F:03 Medium Gray

    F:04 Dark Gray

    F:05 Warm Gray

  • You can select an accent color to be applied to the product. Fabrics can be applied to one surface only. If multiple surfaces are required, please reach out to your local rep to discuss the project.

    Category A:

    camira Blazer

    camira Blazer Lite

Product Specs

Material

9mm Polyester (PET) Felt



Flammability

ASTM E84 Class A Certified

CAN/ULC-S102.2

Size

23.75” x 23.75” x 8 .5”D



Sustainability

Polyester (PET) Felt
60% Pre-Consumer Recycled

Weight

3.12 lb



Installation

Installs on 9/16” or 15/16” Tee-Grid System

Warranty

3-Year



Shipping

4 Week Lead Time



Construction

6" clearance required above grid. In areas where you do not have this clearance, the flat tile is required.

Installations

Request a Quote

Reach out with your project needs and goals. We can provide you with the right acoustic solution for your space, quickly and with straightforward pricing.
