Maze 6
Maze 6 is a collaboration with Peter Dahmen, both designer and paper artist.
Calming geometry in multiple depths – with foolproof assembly. Maze 6 creates a system of intricate passageways in the ceiling. The product ships flat in six pieces that interlock, creating a three-dimensional shape: simply slide one piece into the other. The material and shape provide effective acoustics and pleasing aesthetics.
Maze 6
The Maze 6 tile is made up of only one tile that is quarter turned to create patterns.
Drop the tiles into any 9/16” or 15/16” tee-grid.

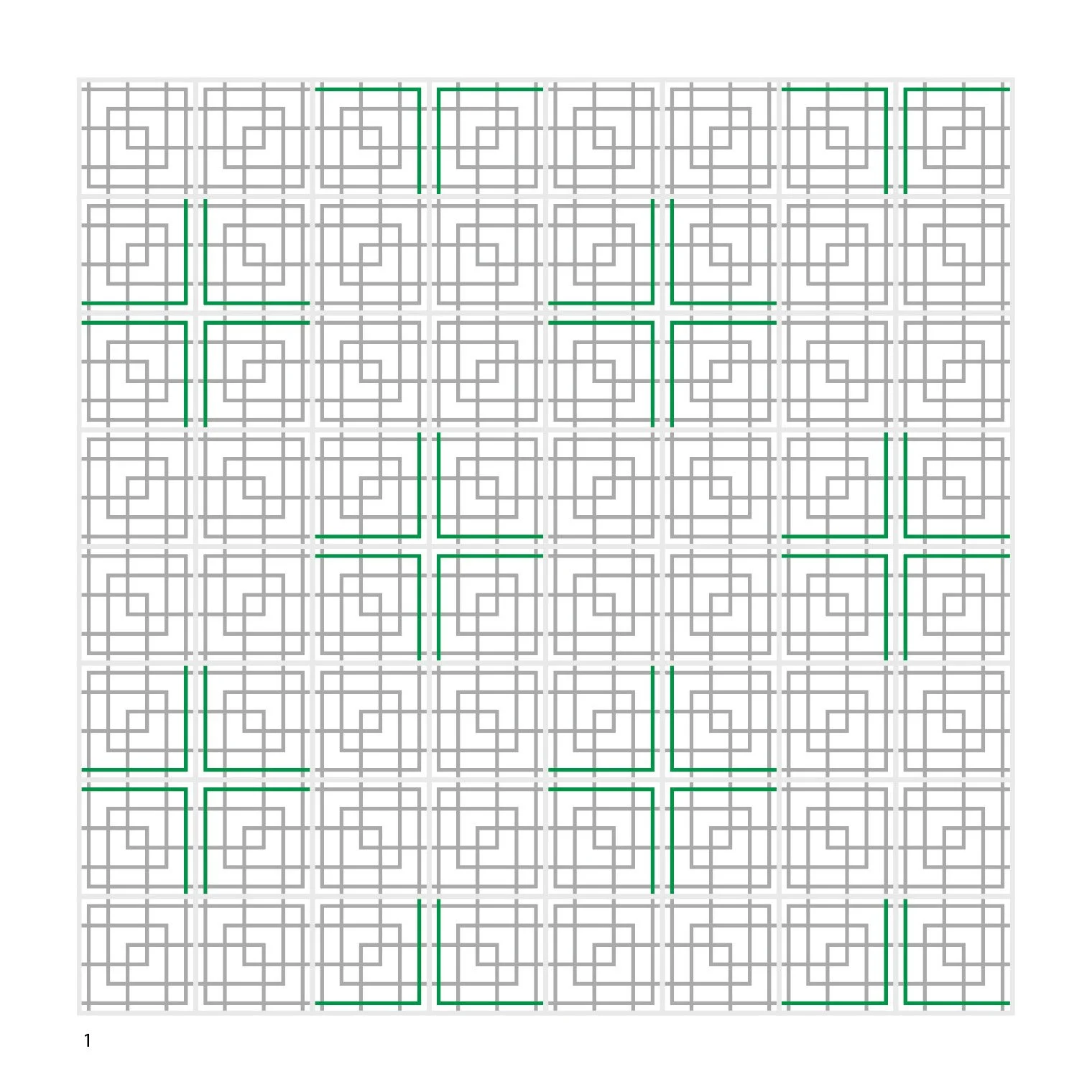

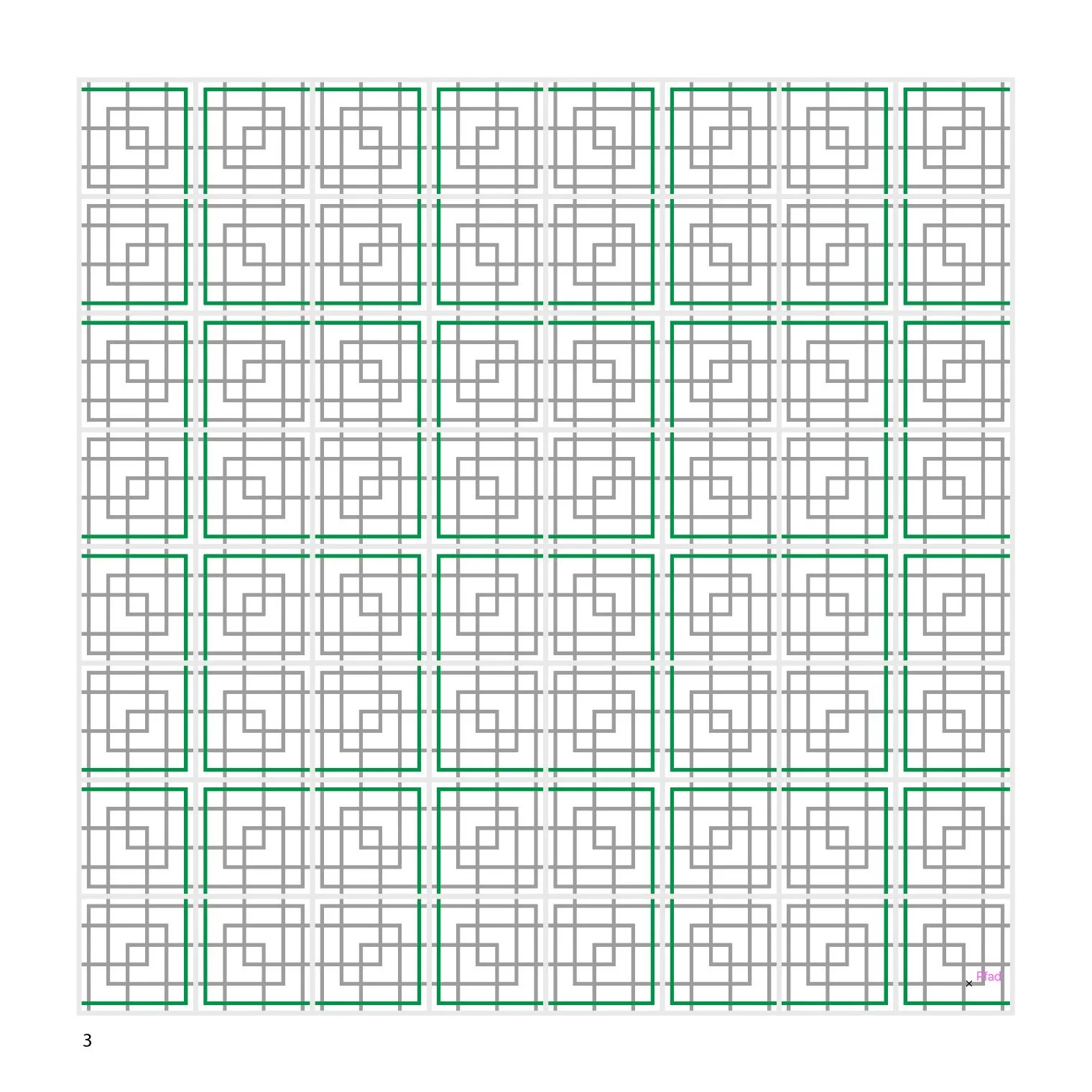

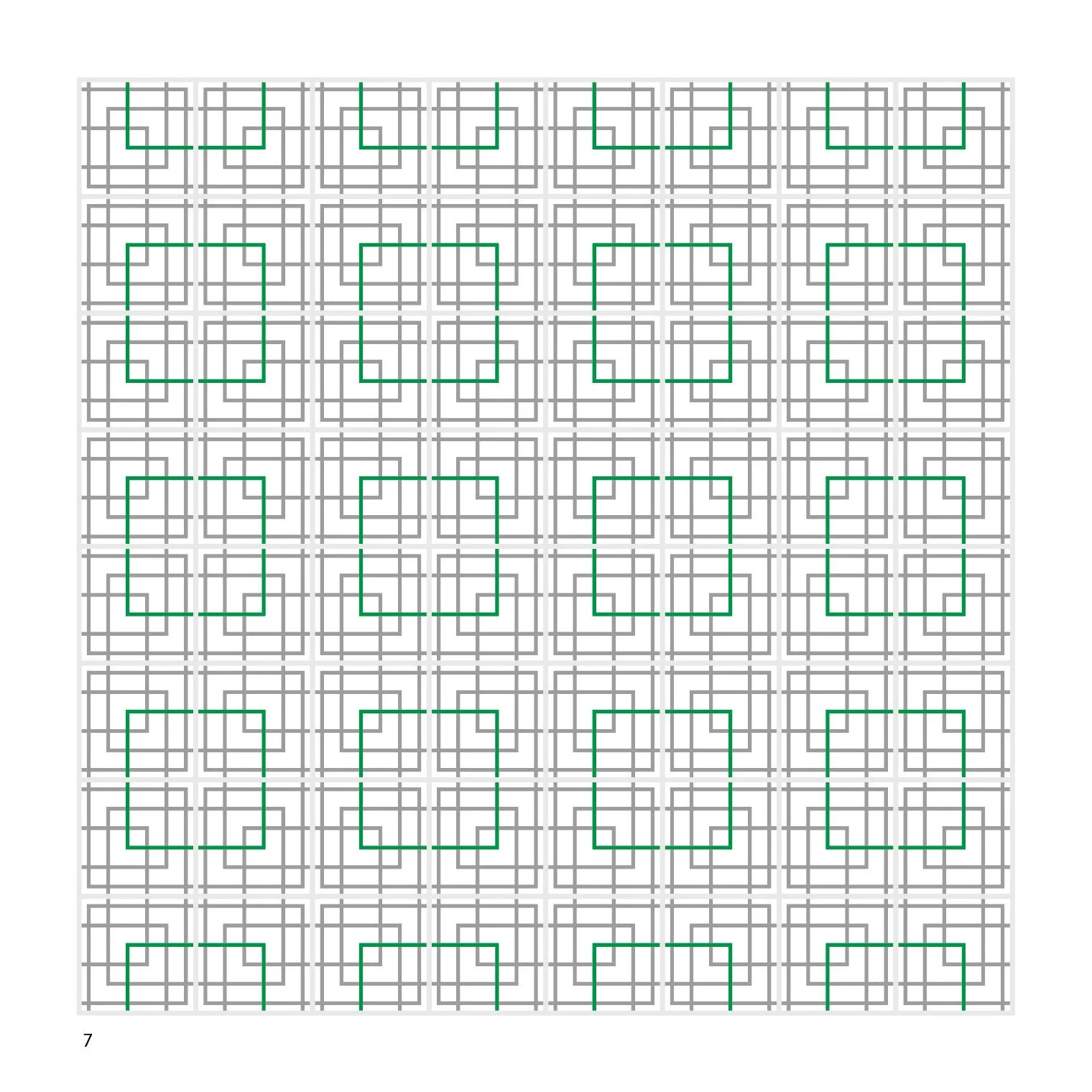

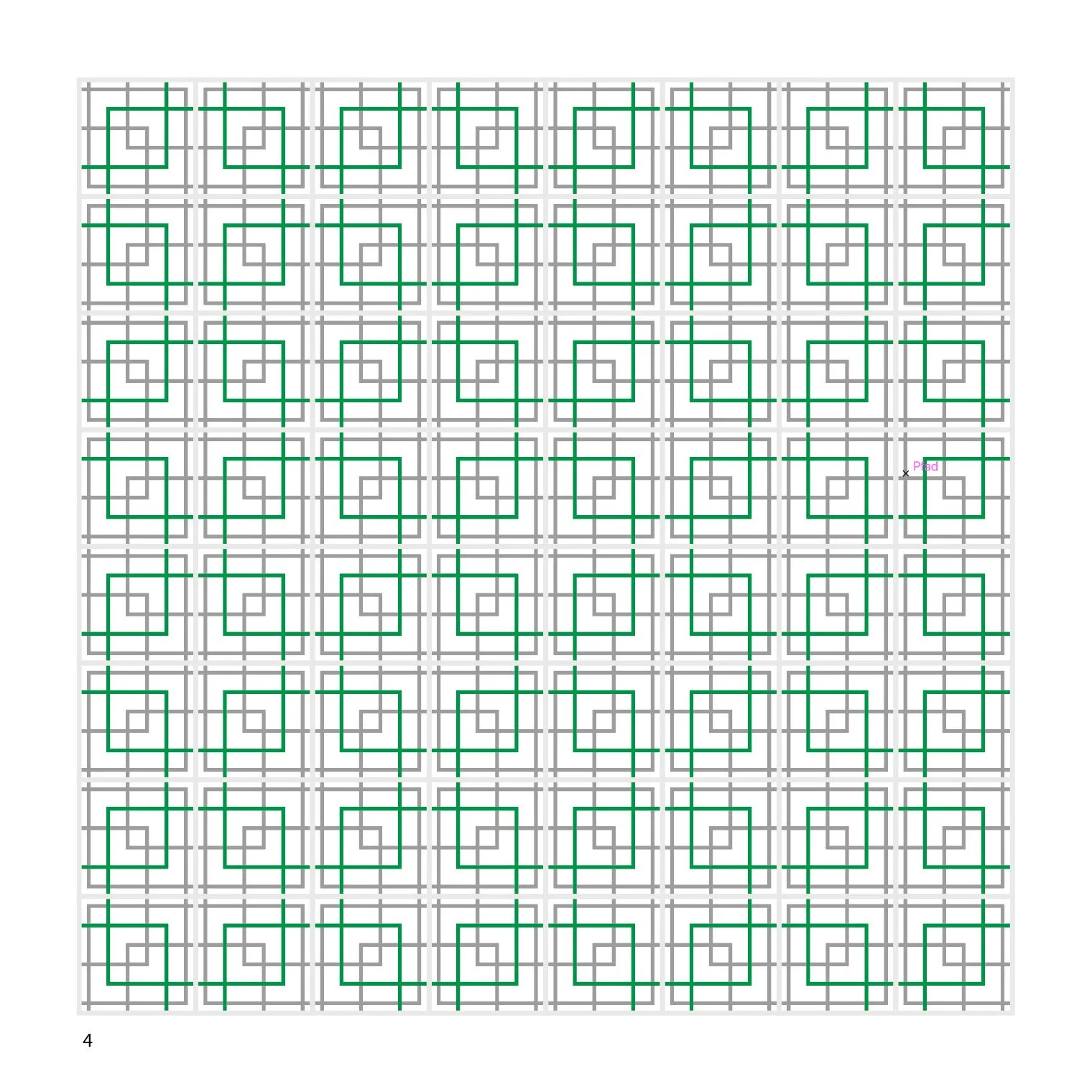

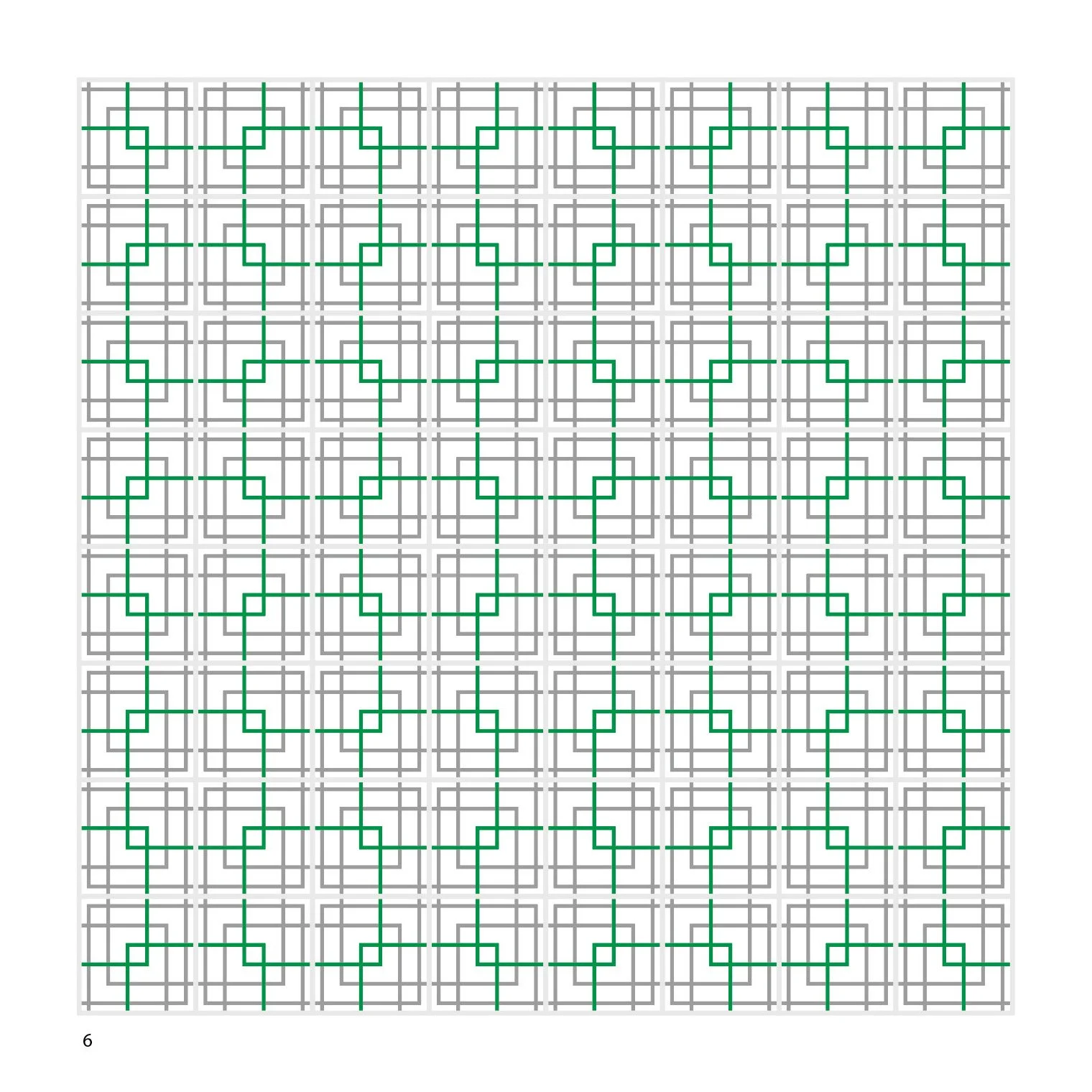

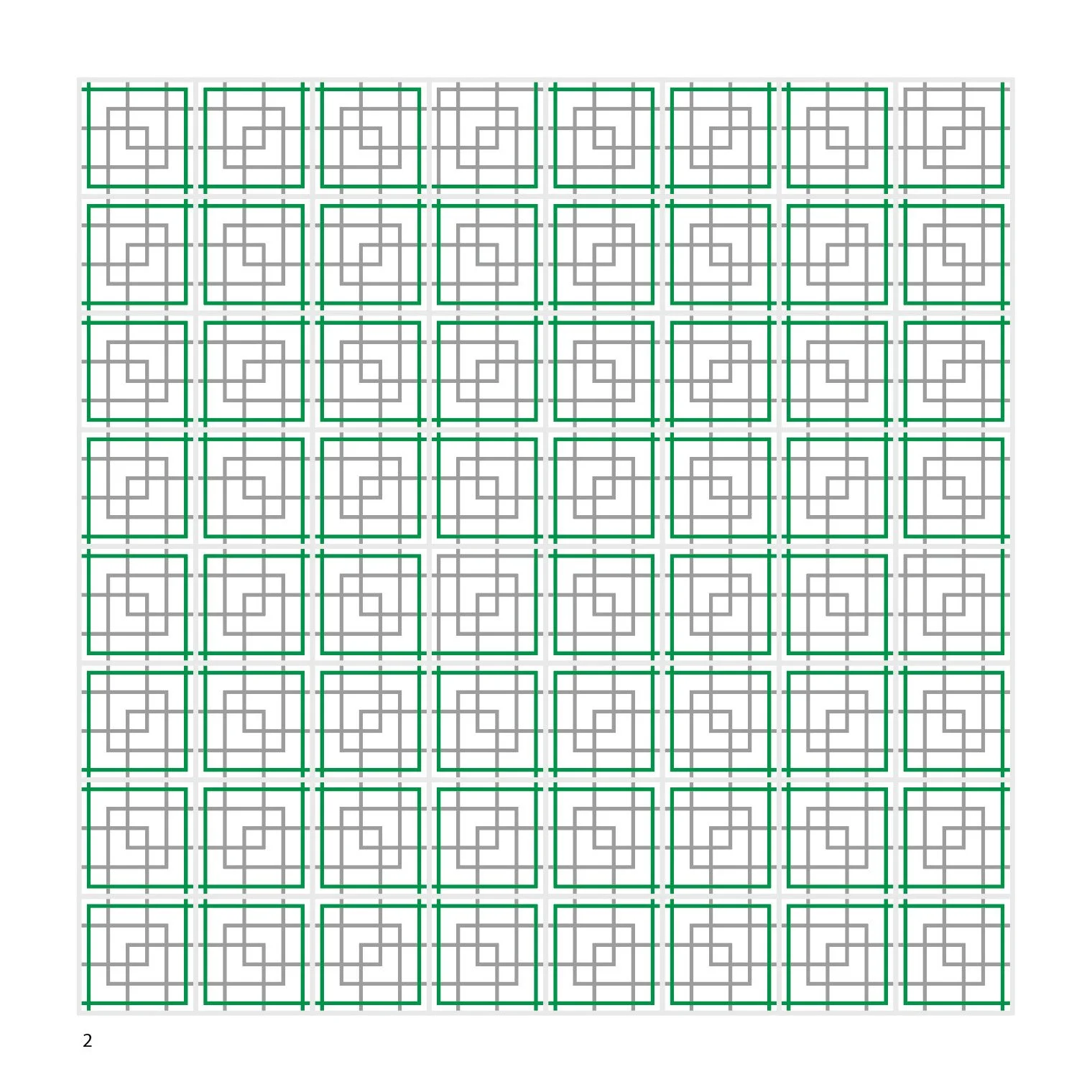

Patterns are unlimited when using accent colors with maze. Below are just some inspirational options adding color just to one element.
Slight variations in color should be expected when using this material. We recommend requesting a sample to verify colors.
-
![]()
F:02 Light Gray
-
![]()
F:03 Medium Gray
-
![]()
F:04 Dark Gray
-
![]()
F:05 Warm Gray
How to spec
-
9/16”
15/16”
-
F:02 Light Gray
F:03 Medium Gray
F:04 Dark Gray
F:05 Warm Gray
-
You can select an accent color to be applied to the product. Fabrics can be applied to one surface only. If multiple surfaces are required, please reach out to your local rep to discuss the project.
Category A:
-
Product Specs
Material
9mm Polyester (PET) Felt
Flammability
ASTM E84 Class A Certified
CAN/ULC-S102.2
Size
23.75” x 23.75” x varies 4.3"(d)
Sustainability
Polyester (PET) Felt
60% Pre-Consumer Recycled
Weight
3.12 lb
Installation
Installs on 9/16” or 15/16” Tee-Grid System
Non-Directional Pattern
Warranty
3-Year
Shipping
4 Weeks Lead Time
Construction
6" clearance required above grid. In areas where you do not have this clearance, the flat tile is required.
